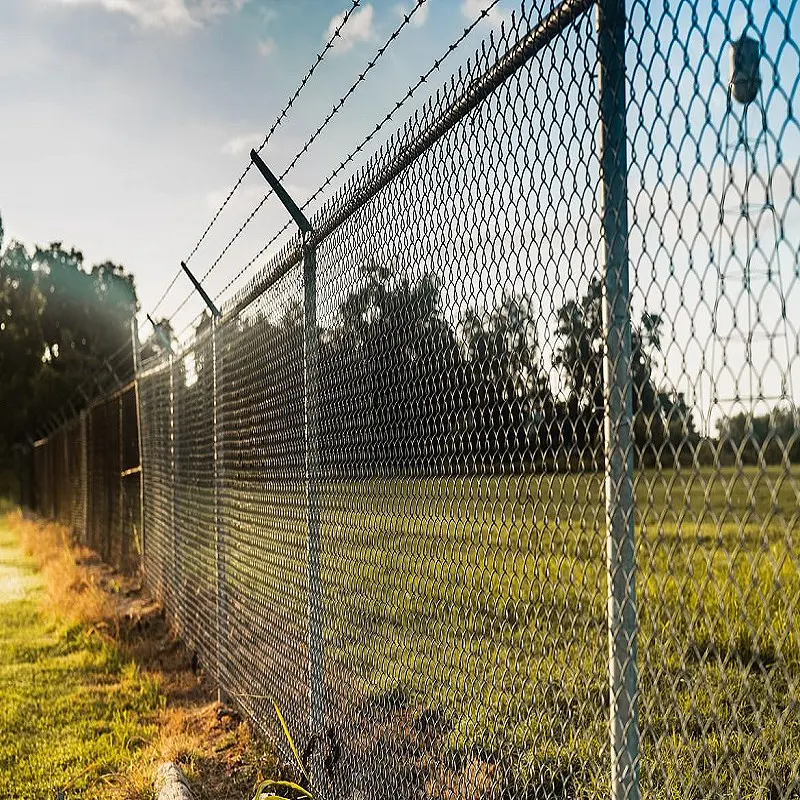

chain link fence also called diamond mesh fences, cyclone fences.The chain link wire mesh is formed by twisting wire raw material together. There are also two kinds of edges which are folded edge and twisted edge. The raw materials can be galvanized steel wire or PVC coated steel wire.
High quality galvanized and PVC coated chain link fence for playground protection
Surface treatment:
PVC coated chain link fence (Galvanized wire inner then PVC coated outer)
Wire diameter: 1.6mm and 4.0mm
Mesh size: 25x25mm, 40x40mm, 50x50mm, 60x60mm, ect
Height of roll: 0.5-3.0m
Length of roll: 5m, 10m, 15m, 20m, 25m
PVC coated Color: Green RAL6005, Grey RAL7016, Black RAL9005
Weave type: Top and bottom in knuckled way Top in twisted way, bottom in knuckled way
Chain link fence also known as rhombic fence, diamond fence or cyclone fence.
It can be designed according to different applications.
Which used as fencing for sports, field, river banks,
construction and residence, also animal fencing.
Chain link fence rolls normally come with line wire
and knuckled edges. Barbed edges are more popular and with higher security.
Packing: in compressed roll, plastic film used for layer separating,
the top and bottom wrapped thick plastic film.
Specification list |
||||
Galvanized Chain Link Fence |
Mesh | Wire dia | Width | Length |
mm | mm | m | m | |
25 | 1.6-3.0 | 0.5-3 | 5-25 | |
40 | ||||
50 | ||||
60 | ||||
PVC Coated Chain Link Fence |
Mesh | Wire dia | Width | Length |
mm | mm | m | m | |
40 | 2.7-4.0 | 0.5-3 | 5-25 | |
50 | ||||
60 |
