Galvanized welded Wire Mesh is made of selected quality iron wire through high-precision processing. The end product is level and flat, sturdy structure, and even strength through-out.
Product Details:
Place of Origin:Hebei, China
Material:Low carbon steel wire,electro or hot dipped galvanized wire,stainless steel wire
Wire diameter:0.5mm to 3.0mm
Hole size:6×6mm,10×10mm,12×12mm,16×16mm,19×19mm,25×12mm,25×25mm,25×50mm,50×50mm,75×50mm,100×75mm
Length:5m、10m、25m
Width:0.5m-2.0m
Special specifications can be customized
Features：
Welded wire mesh is made of selected quality iron wire through high-precision processing.
The end product is level and flat, sturdy structure, and even strength throughout, which is widely used in industry, farming, construction, transportation and mining for protection of structure, safety segregation, keeping of poultry and livestock, and decoration etc.
The package:
Each roll packed by PE film，each roll packed by water proof paper ，packed by wooden pallet,or packing as per the customer's request.
The welding style:
Hot dip galvanized after welding
Hot dip galvanized before welding
Electro galvanized after welding
Electro galvanized before welding
Specification：
| Specification List Of Galvanized Welded Wire Mesh | ||
| Opening | Wire Diameter(mm) | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.0 x 6.0 | 0.50-3.00 |
| 3/8" x 3/8" | 10.0 x 10.0 | |
| 1/2" x 1/2" | 12.0 x 12.0 | |
| 5/8" x 5/8" | 16.0x 16.0 | |
| 3/4" x 3/4" | 19.0 x 19.0 | |
| 1" x 1/2" | 25.0 x 25.0 | |
| 1" x 1" | 25.0x 25.0 | |
| 1" x 2" | 25.0 x 50.0 | |
| 2" x 2" | 50.0x 50.0 | |
| 3" x 2" | 75.0 x 50.0 | |
| 4" x 3" | 100.0 x 75.0 | |

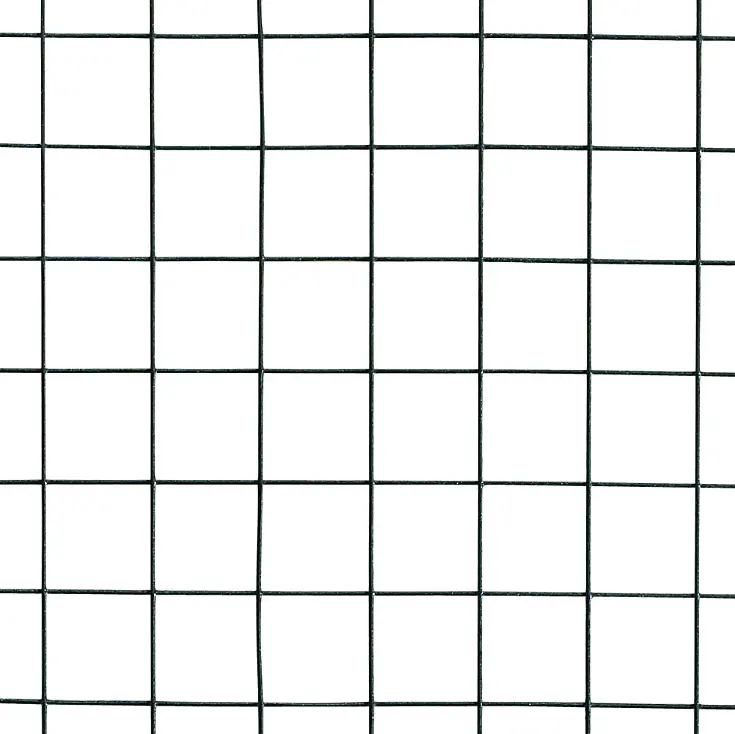

Image Display：
 |
 |
 |
 |
 |
 |
