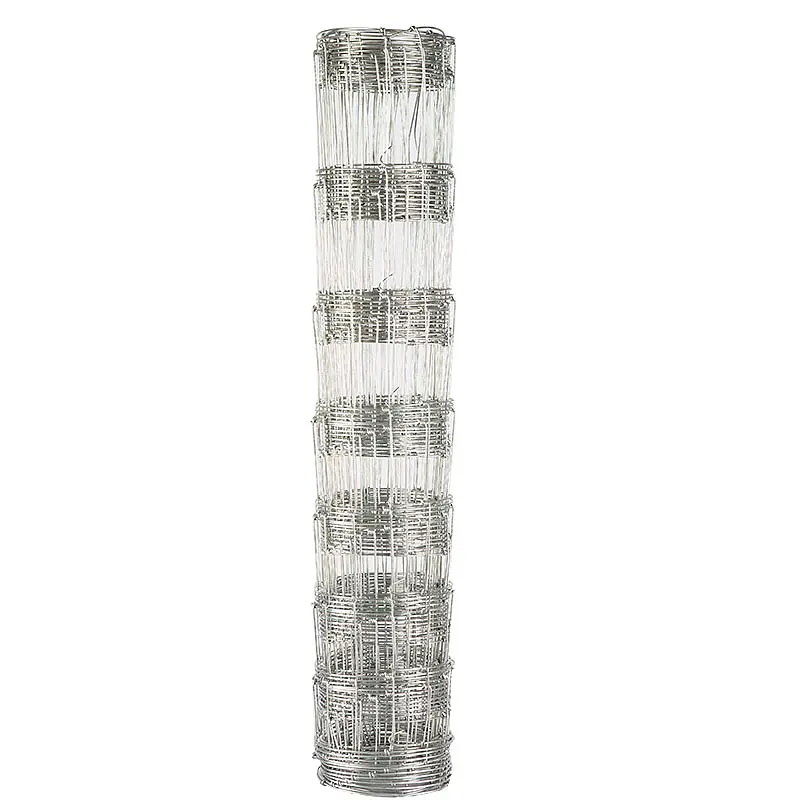

High security galvanized hinge joint knot field fence or cattle fence

Roll length: 50-200m
Top and bottom wire: 2.5mm, 3mm
Metal Type: Steel
Payment Terms: TT , LC , Others

Field fence made of high quality carbon steel, is also called cattle fence or grassland fence. Field fences can be divided into fixed knot field fence and hinge joint fencing. With galvanized surface, they have good anti-corrosion effect. They are featured by the high strength, easy installation and long service life and widely used for fencing of various animals such as cattle, horse, sheep and deer. Besides, they also can be used with barbed wire or chicken wire for farm fencing, garden fencing, road fencing, forest fencing and so on.


Product Details:

Place of Origin: Hebei, China

Metal Type:Steel

Frame Finishing:Galvanized

Usage:Garden Fence, Highway Fence, Sport Fence, Farm Fence

Top and bottom wire:2.5mm, 3mm

Roll length:50-200m

Application:used for grassland, protection of ecological projects

Tensile Strength: Line wires:750-1000N/mm2  Cross wires:350-450N/mm2


Surface treatment:

Class A: Hot dipped galvanized hinge joint field fece(zinc coated:220-260g/m2)

Class B: Hot dipped galvanized hinge joint field fence(zinc coated:60-70g/m2)

Class c: Electro galvanized hinge joint field fence(zinc coated:15-20g/m2)


Mesh Wire diameter:1.8mm~2.5mm

Edge wire diameter: 2.0mm~3.2mm


Opening

(warp)15-14-13-11-10-8-6cm;    ( 6" 5.5" 5" 4.5" 4" 3" 2.5")

(weft)15-18-20-40-50-60-65cm   (6" 7" 8" 15" 20" 24" 25")


Application:

Used for borders in fields and grassland for breeding of deer, cattle and other animals.


Characteristics:

Corrosion resistance, high tensile strength wire, durable against hit etc.


Products names:

field fence, grassland fence, cattle fence, stock fence, animal fence,  deer fence, Horse Fence  etc.


Packing:

packed by plastic film and wooden pallet


Specification:

The specification of Hinge Joint Field Fence: Gross Weight Top and Bottom Wire Dia.mm Inner Wire Dia. Material
Type Specifications(the incremental vertical hole sizes)
kg
mm
7/150/813/50 102+114+127+140+152+178
19.3
2.5
2
Hot dip galvanized wire,Zinc
8/150/813/50 89(75)+89+102+114+127+140+152
20.8
2.5
2
Coating of 40-50g/m², Zinc coating more than 200g/m²
8/150/902/50 89+102+114+127+140+152+178
21.6
2.5
2

8/150/1016/50 102+114+127+140+152+178+203
22.6
2.5
2

8/150/1143/50 114+127+140+152+178+203+229
23.6
2.5
2

9/150/991/50 89(75)+89+102+114+127+140+152+178
23.9
2.5
2

9/150/1245/50 102+114+127+140+152+178+203+229
26
2.5
2

10/150/1194/50 89(75)+89+102+114+127+140+152+178+203
27.3
2.5
2

10/150/1334/50 89+102+114+127+140+152+178+203+229
28.4
2.5
2

11/150/1422/50 89(75)+89+102+114+127+140+152+178+203+229
30.8
2.5
2
